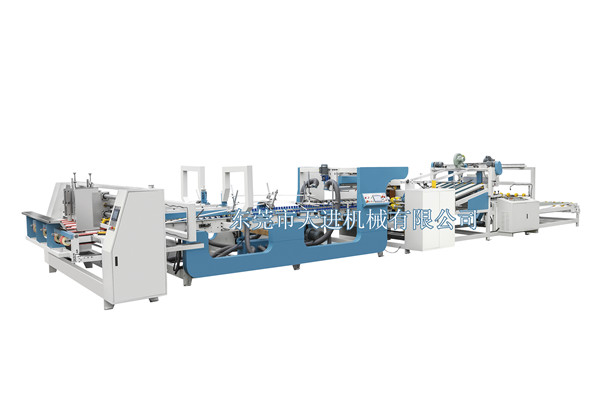

TJ-CH fully automatic nail and paste machine
Main component details:
1. Siemens PLC and modules
2. Taiwan's Heavenly Switch
3. Taiwan travel switch
4. Taiwan Yangming proximity switch
5. Taiwan Shilin contactor
6. Taiwan gearbox
7. Kyushu high-pressure fan
Mechanical advantages:
1. The origami part adopts a suction system
2. Fully automatic suction and paper feeding until nailing
3. Fast speed, no need for skilled workers
4. Effectively reduce labor intensity
5. Good molding effect with pre pressing and wire pressing
6. Equipped with servo leveling system for better leveling effect
Mechanical parameters:
Mechanical specifications TJ-CH2400 TJ-CH2600 TJ-CH2800 Maximum paper size (length * width) 2300*1200mm 2500*1200mm 2700*1200mm Minimum paper size for nail box (length * width) 780*350mm 780*350mm 780*350mm Minimum paper size for paste box (length * width) 780*300mm 780*300mm 780*300mm Paper feeding speed of nail box 50 boxes/minute Paper feeding speed of the glue box 90 boxes/minute mechanical power 18KW Net Weight 5.5T Mechanical dimensions 13000*3500mm(Length * Width)
